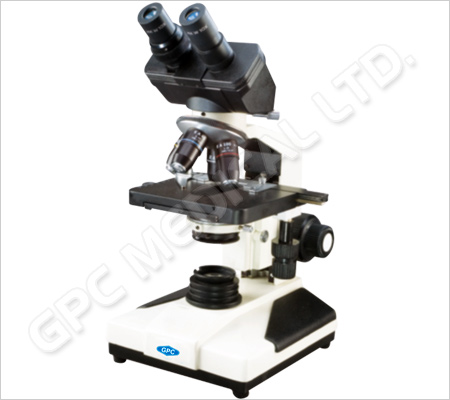

BINOCULAR RESEARCH MICROSCOPE
Observation Head | 45-degrees inclined Binocular head rotatable through 360-degrees |
Nosepiece | Quadruple nosepiece with accurate centering and positive click stops |
Stage | Mechanical stage of 135x140mm. Low co-axial drive controls for X-Y movement and cross movement 50x70mm, fully graduated vernier scale. |
Illumination | 6V-20W halogen lamp, 220/110Volts. Mirror attachment for working in day light |
Objectives | Semi Plan DIN 4x - 10x- 40x SL and 100x SL Oil immersion |
Eyepieces | DIN Size Wide field WF 10x and H5x or H6x or H16x (any two pairs). |
