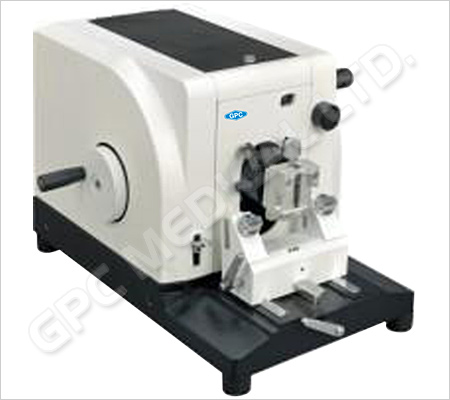

Advanced Senior Precision Rotary Microtome
It is a universally approved, most modern and reliable sectioning equipment designed for very precise sectioning of tissues up to 1 micron thickness. The feed indicator, located in front of microtome is operated by the latest 'CAM DRIVE SYSTEM' for accurate feed setting from 1-50 microns in steps of one micron. The interior mechanism rests on a heavy cast iron base and is covered with a full swing protective cover for easier cleaning and lubrication. The salient features include independent feed mechanism with automatic safety device, universal knife holder with lateral movements permitting use of the entire knife edge, universal vice type object holder for accurate centering of the specimen. The instrument ensures life-long smooth operation. Individual components are fabricated and assembled using latest technology and selected materials. The knife supplied with the microtome is fabricated from imported fine grain steel tested for micro-structure and is heat treated for optimum rigidity and sharpness.
Features :
Reversing Handle
Pull-up feed
Scale Knob
Universal vice
Universal Razor Holder
Digital Scale
Slides on Ball bearing
Supplied with the following accessories in sturdy wooden cabinet.
Razor 120 mm, with back & handle in box. : 1 No.
Oil Can : 1 No.
Honing Stone in box : 1 No.
Dust Cover : 1 No.
Object holders (set of three) : 1Set
Disposable Blade Holder with 5 Nos. Disposable Blades.
Illustrated operating manual : 1 No.
