- Anesthesia Ventilator
- Application : Adult, Pediatric
- Driven Mode : Pneumatically driven electronically
- Power supply : 100-240V, 50/60Hz
- Power Consumption : < 50W
- Display : High light LED display
- Ventilation mode : IPPV Manual
- Tidal Volume : 50 – 1600 cml
- Breath frequency : 3 – 100
- I : E ratio (1:6-4:1) Monitor Parameter : Tidal Volume, Breath frequency MVAlarm : MV high alarm, MV low alarm, TV high alarm, TV law alarm, Curcui Disconnection Alarm, Oxygen failure alarm02 Flush : 25mI-75L/mm
- Rotameter: Five Tube Flow meter Bobbin Type
- O₂ Tube : 0.1L/min-1L/max, 1L/min 10L/max
- N₂O Tube : 0.1L/min-1L/max, 1L/min 12L/max
- Air Tube : 0.1L/min-15L/min
- O₂ and N₂O linkage device hypoxy guard oxygen
- Flush : 25L/min-75L/min
- 02:0.25 MPa - 0.65 MPa
- N20: 0.25 MPa - 0.65 MPa
- Air: 0.25 MPa - 0.65 MPa
- Upgraded integrated Circle Absorber, With twins large volume CO₂ absorbing Efficiency
- With non-return respiratory valve and expiratory valve on it avoid gas back flowing
- With APL valve on it, the airway pressure could be adjusted freely With 'Manual/Ventilation
- Switch On it, easily and quickly change
- One vaporizer /isoflurane /halothane / Sevoflurane
- Rust Proof Epoxy Coated High Strength Frame Pipeline Attachment for O₂, N₂O
- One yoke for O₂ (5 ltrs) cylinder and one for N₂O (5ltrs) cylinder
- Select tec bar with provision to mount 2 Vaporizers

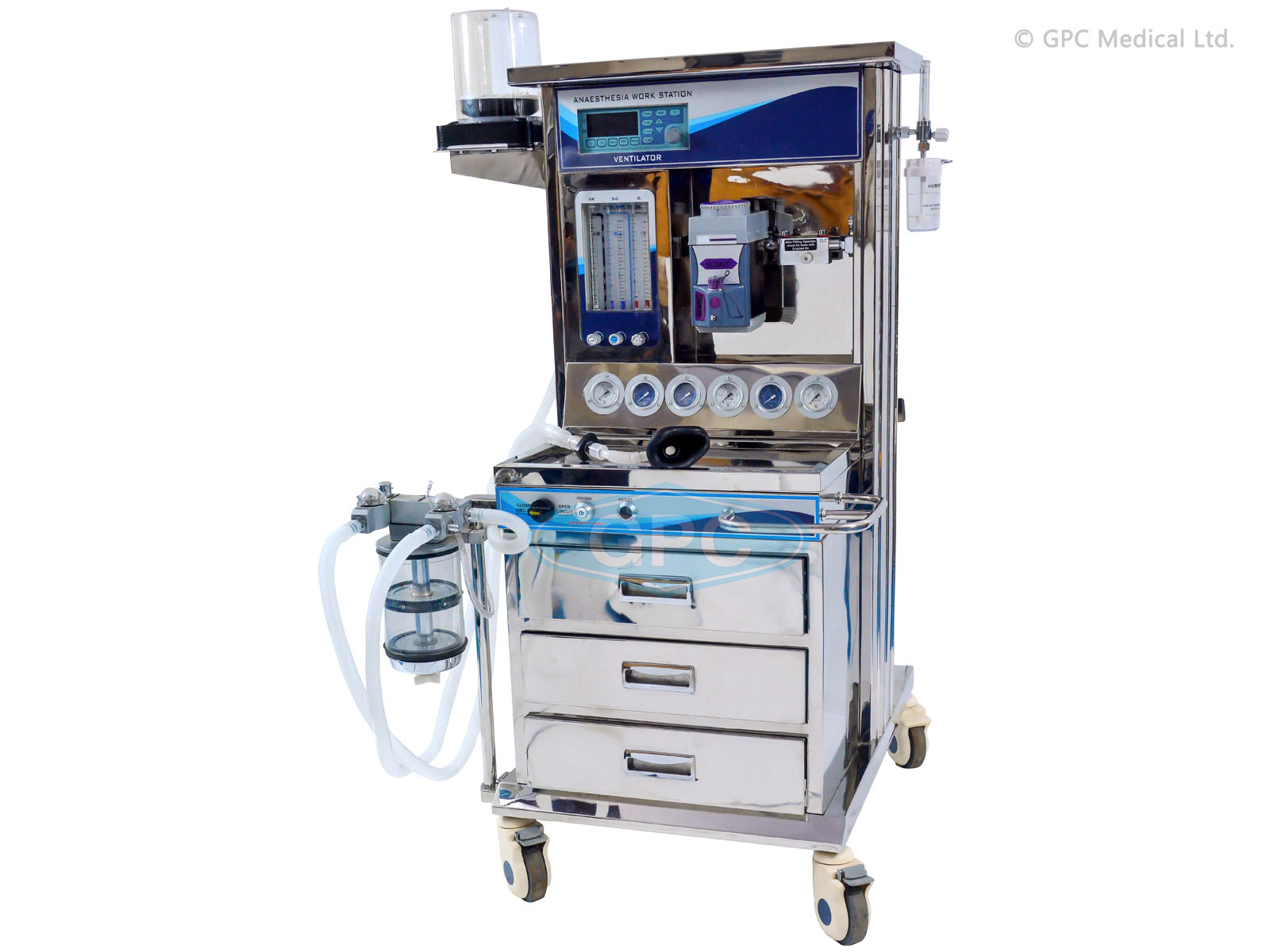

Anesthesia Workstation
