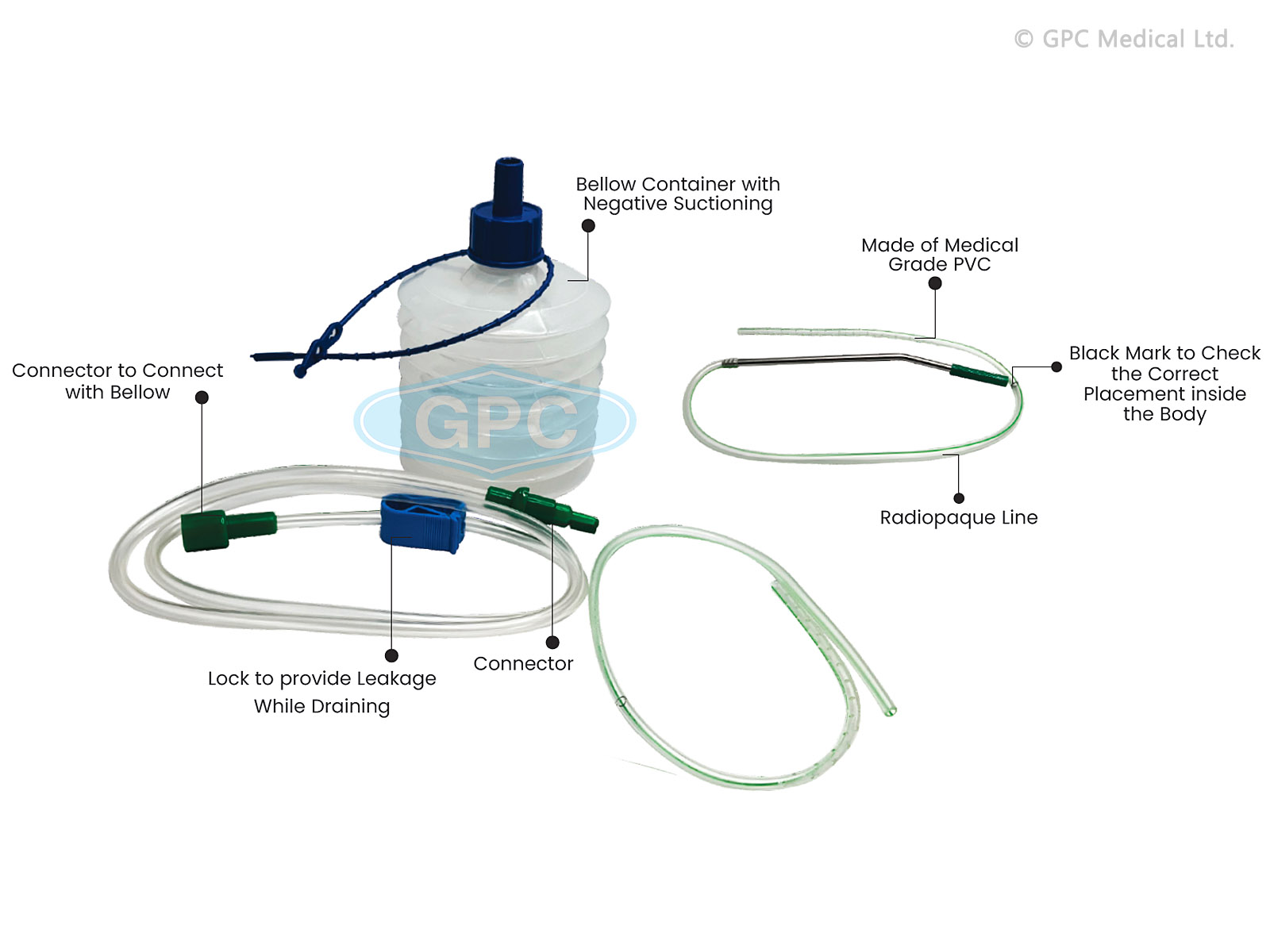

Closed Wound Suction Unit
Model No. DIS115
INTENDED USE
- It is a portable suction drainage system used for continuous post-operative drainage for internal hemorrhage and exudate. By utilizing the vacuum force of depressed bellow, the drain liquid is sucked out through the drain.
Model No. DIS115
Technical Specifications:
| S.No. | Size | Shaft Diameter (OD) | Connection Diameter | Total Length (± 0.10 mm) | Connection Length | ||
| 800 ml 600 ml | 800 ml 600 ml | 800 ml 600 ml | 800 ml 600 ml | ||||
| 1 | FG-8 | 2.7 ± 0.1 mm | 2.1 ± 0.1 mm | 80 mm | - | 8.0 mm | - |
| 2 | FG-10 | 3.3 ± 0.1 mm | 2.6 ± 0.1 mm | 175 mm | 132 mm | 12.5 mm | 10.5 mm |
| 3 | FG-12 | 4.0 ± 0.1 mm | 3.3 ± 0.1 mm | 175 mm | 132 mm | 12.5 mm | 10.5 mm |
| 4 | FG-14 | 4.7 ± 0.1 mm | 4.0 ± 0.1 mm | 175 mm | 132 mm | 12.5 mm | 10.5 mm |
| 5 | FG-16 | 5.3 ± 0.1 mm | 4.5 ± 0.1 mm | 175 mm | 132 mm | 12.5 mm | 10.5 mm |
| 6 | FG-18 | 6.0 ± 0.1 mm | 5.0 ± 0.1 mm | 175 mm | 132 mm | 12.5 mm | 10.5 mm |
- Made from non-toxic, non-irritant PVC.
- The product used for close wound drainage under negative pressure post operatively.
- Radiopaque drainage catheter have multi-perfomation for effective drainage.
- Device comes with different catheter size with needle to meet low to high drainage requirements.
- Disposable, sterile, single use.
