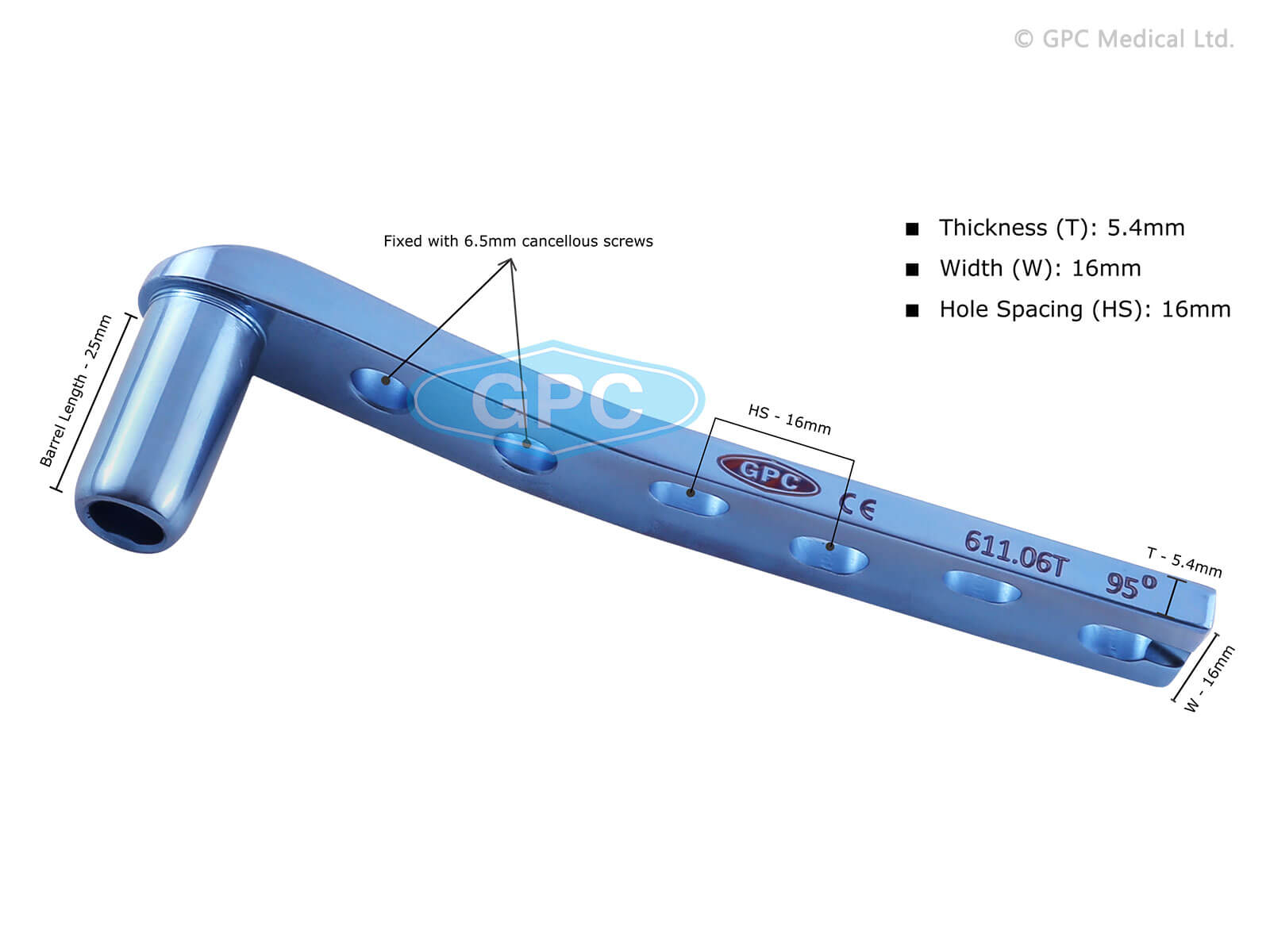

D.C.S. Barrel Plates with dynamic compression holes and slot for tension device.

Model No. 611
D.C.S. Barrel Plates with dynamic compression holes and slot for tension device.
Request a Quote Request a Catalog

D.C.S. Barrel Plates with dynamic compression
holes and slot for tension device.

Used for condylar fractures, avoids further damage to the bone.
Fixation with 4.5mm cortex screws.

Profile

Thickness           5.4mm
Width                 16mm
Hole Spacing      16mm
Barrel Length      25mm

D.C.S. Barrel Plates 95°

  No. of
  Holes

  Length
  (mm)

                  CODE

  S.S.

  Titanium

  6

  100

  611.06

  611.06T

  7

  115

  611.07

  611.07T

  8

  130

  611.08

  611.08T

  9

  146

  611.09

  611.09T

  10

  163

  611.10

  611.10T

  12

  198

  611.12

  611.12T

  14

  225

  611.14

  611.14T

  16

  260

  611.16

  611.16T
